Components database

Barcode/QRcode encoding for the parts/components database:

for ECAL: PEB-VFE/LVR/FE-[part]-[count]
example: PEB-VFE-CATIA-1234 -> Part for Ecal Barrel, VFE card, CATIA ASIC, 1234 pieces

for BTL: PBTL-PCC-[part]-[count]
example: PBTL-PCC-SHIELD-123 -> Part for Barrel Timing Layer, PCC card, shields, 123 pieces


for common parts of both sub-detectors: PEBTL-[part]-[count]

allowable parts:
NK -> optical fibre NaKed fan-out
FN -> optical fibre rugged FaN-out and patch cords
SH -> optical fibre SHuffle patch cords
TK -> optical fibre TrunK cables
AC -> optical fibre ACcessories (e.g. adaptors, pin, etc.)
LCBL -> Low voltage CaBLe
BCBL -> Bias voltage CaBLe
LVPS - Low Voltage Power Supply
BVPS - Bias Voltage Power Supply

example: PEBTL-LVPS-10 -> Part for Ecal Barrel or Barrel Timing Layer, Low Voltage Power Supply 10 pieces

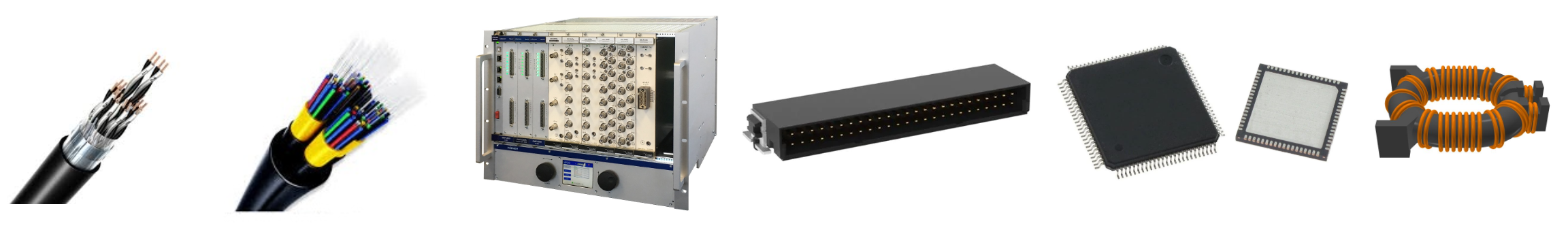

List of components inserted into the DB:
