SAFIR TEST SETUP

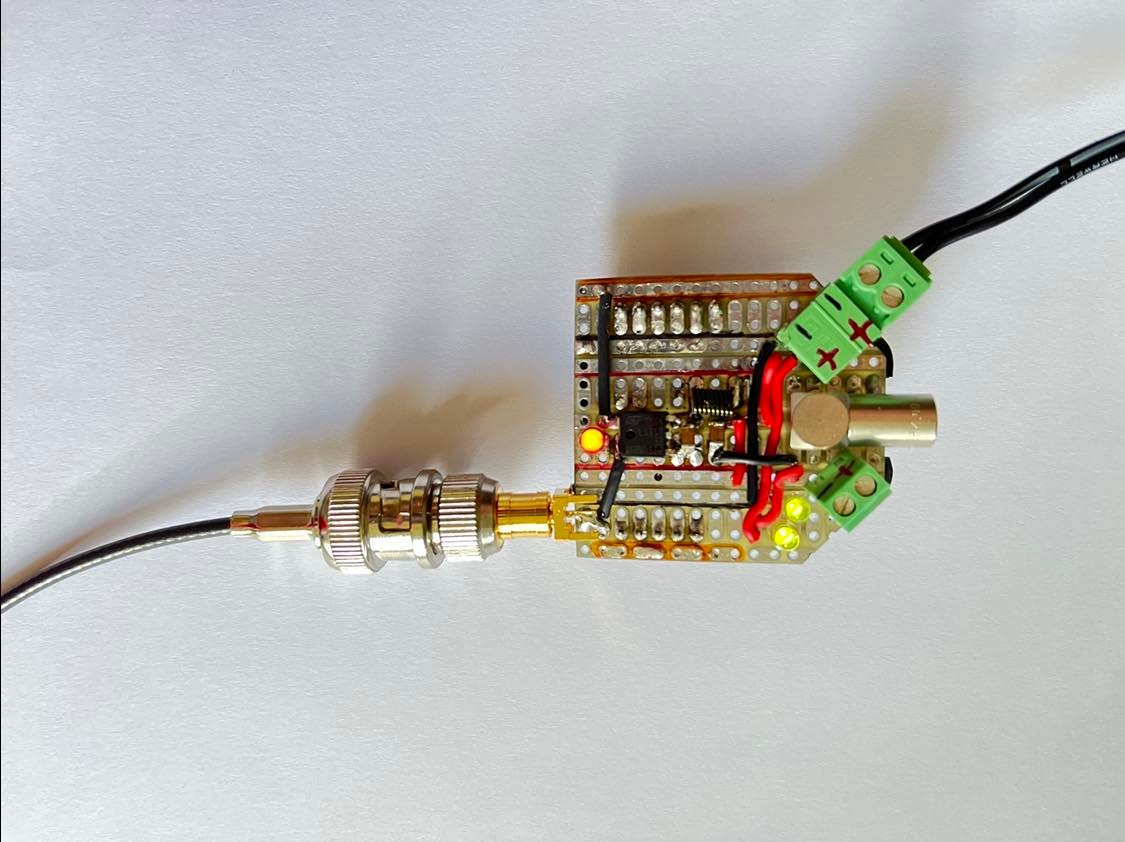

SPOW emulation card was constructed to test the SFCM cards: it features an input PI filter 47uF (25 V) - 82 nF (6A) - 47 uF (25 V), a 3.3 V output LDO. Can be powered at 5 V via LEMO cable, screw terminal or USB. It has 3 LEDs for input voltage and output voltage status monitoring and an overcurrent protection. As an option the output is available via an SMB connector to measure the output's noise.
